80GHz Series Radar Water Level Transmitters

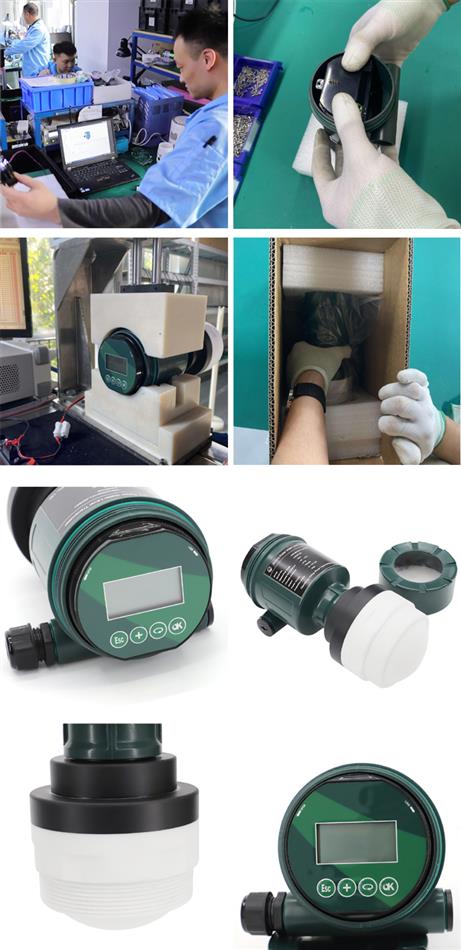

VRPWRD81H Non-contact Intelligent 80GHz Water Radar Level Transmitter
Model: VRPWRD81H
Features: Antenna integrated with a lens, small dead zone, high precision, easy installation.
Application: Measuring water level in reservoirs, hydropower stations and rivers.
Specifications:
Measuring range: 85m/120m
Beam angle: 3°
Accuracy: ±1mm
Process connection: G3 1/2’’ thread / T- bracket
Working temperature: -40℃ - +70℃
Frequency: 80GHz
Power supply: 6 - 30V DC
Output: RS485 / Modbus
Blueteeth Setting: Optional
Enclosure protection grade: IP67 for plastic; IP68 for Aluminum
80GHz Series Radar Water Level Transmitters (Version 2023)EPT.pdf
