Guided Wave Radar Level Transmitters (1.8GHz)

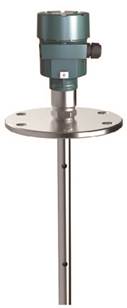

VRPWRD36 Guided Wave Radar Level Transmitter
Features: coaxial tube probe
Application: best choice for a liquid with low dielectric constant or waving surface, a tank with complicated inner structure.
Measuring range: 6m
Process connection: thread/ flange
Process temperature: -40 ~ +250℃
Process pressure: -0.1 ~ 2.0MPa
Accuracy:±3mm
Repeatability: ±2mm
Frequency range: 100MHz ~ 1.8GHz
Explosion proof: Exia IIC T6 Ga
Protection grade: IP67
Signal output: 4~20mA / HART ( 2-wire/ 4-wire)
